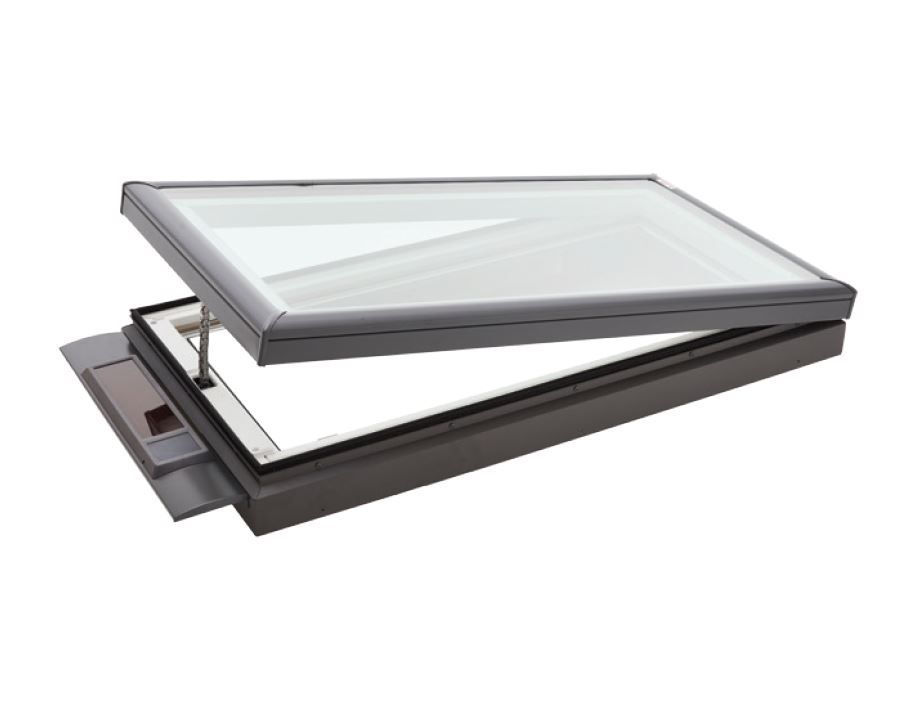

VELUX VCS
The ultimate flat roof skylight that provides abundant daylight and controllable ventilation.
Features a solar panel that captures available daylight to recharge a highly efficient, concealed battery-powered operator and control system.
Solar Skylight Flat Roof

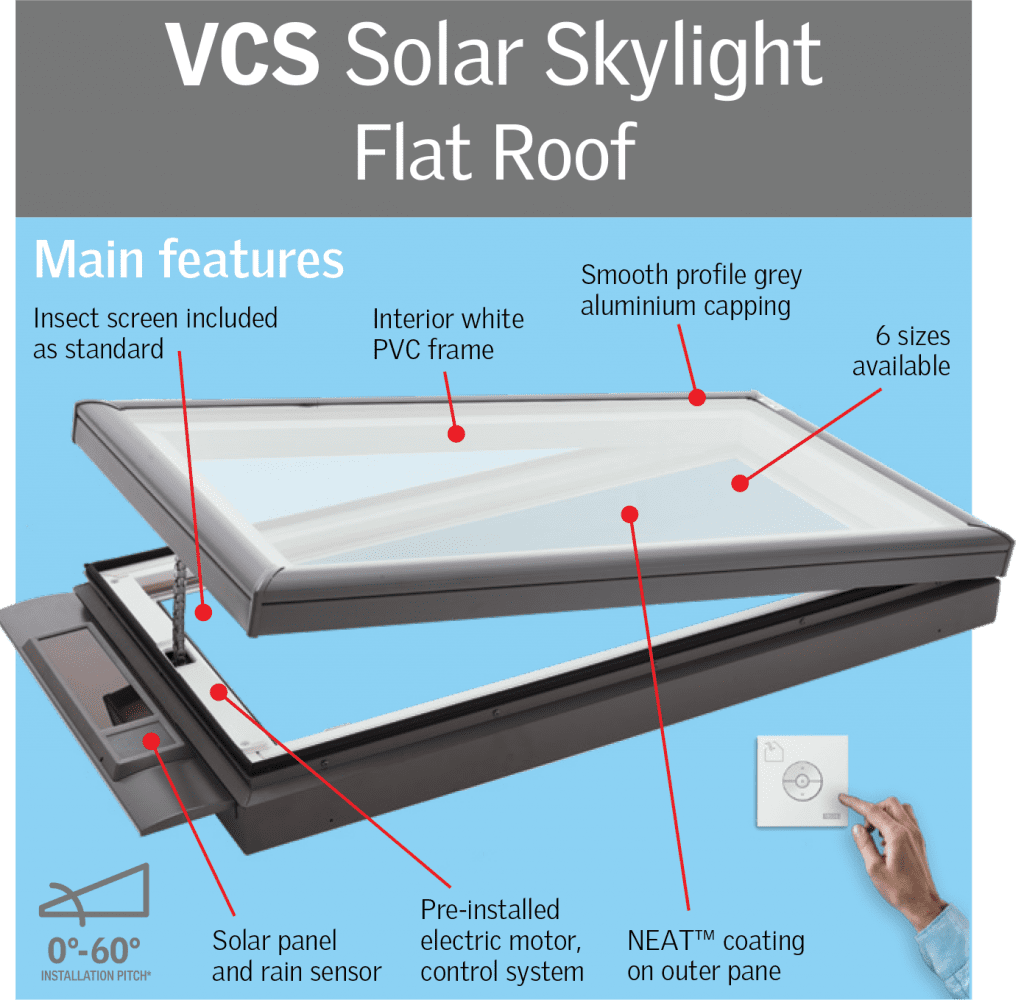

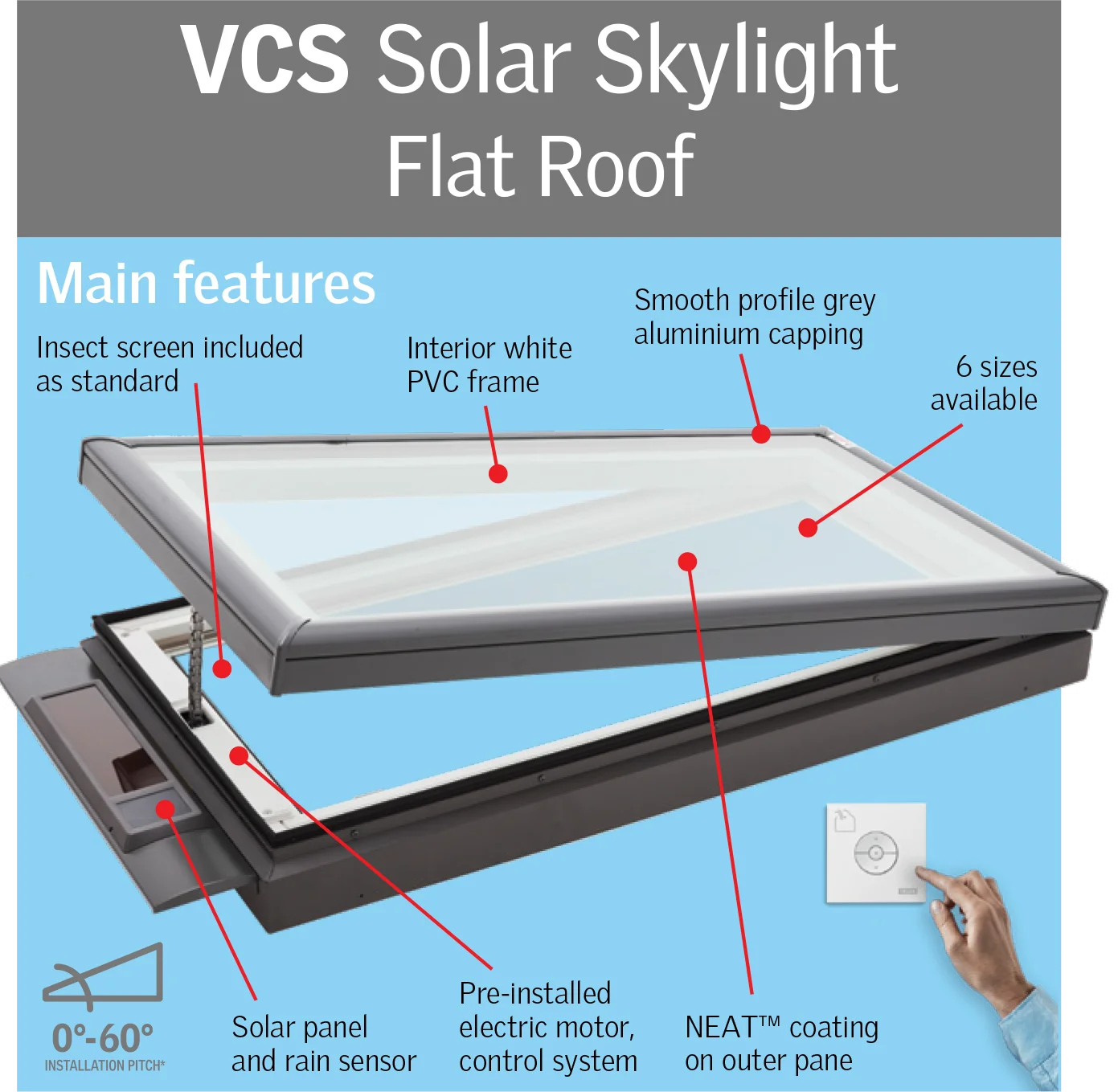

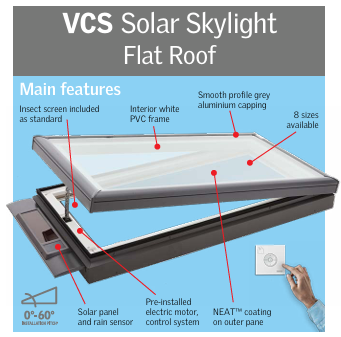

Product features:
- Wireless installation. No electrician required.
- Maintenance Free – White PVC interior frame for a tough, hard wearing interior finish.
- Outer aluminium cappings (grey).
- Available in 6 sizes.
- Remote control operation.
- Rain sensor automatically closes the skylight when rain is detected.

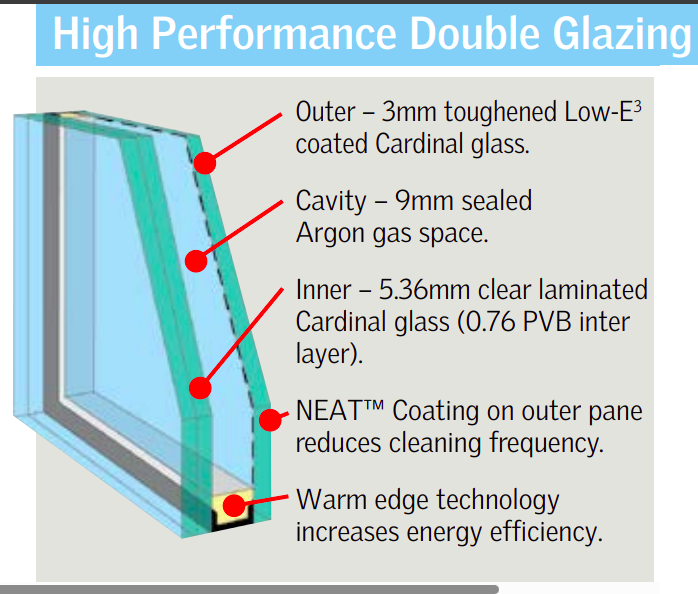

- High Performance double glazing as standard, with NEAT™ outer coating: reduces cleaning frequency.
- Includes removable insect screen.
- Requires custom-made flashing (not supplied by VELUX).

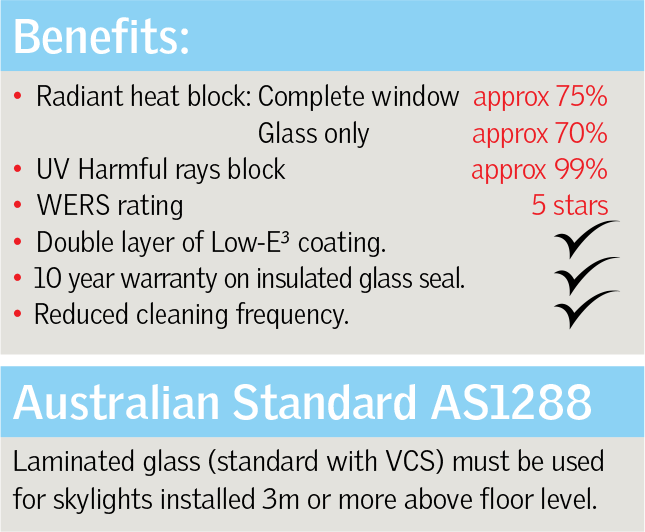

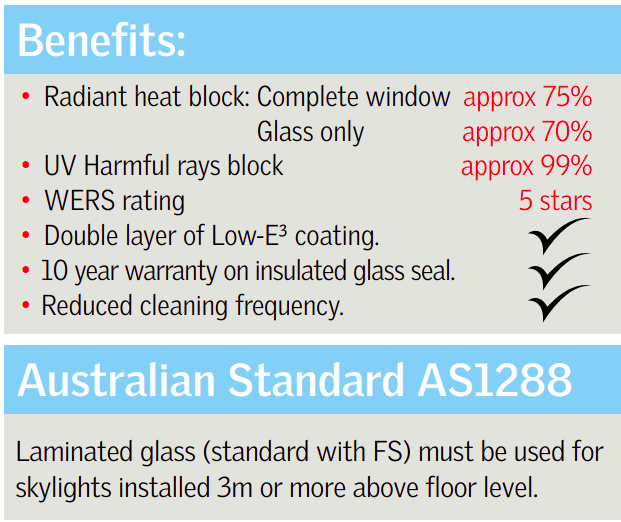

- Approx 75% heat block
Wireless Control System
- Rain sensor automatically closes the skylight once rain is detected.
- Timer function included.
- Home Automation Systems interface (KLF 200) available.
Our range of VELUX products

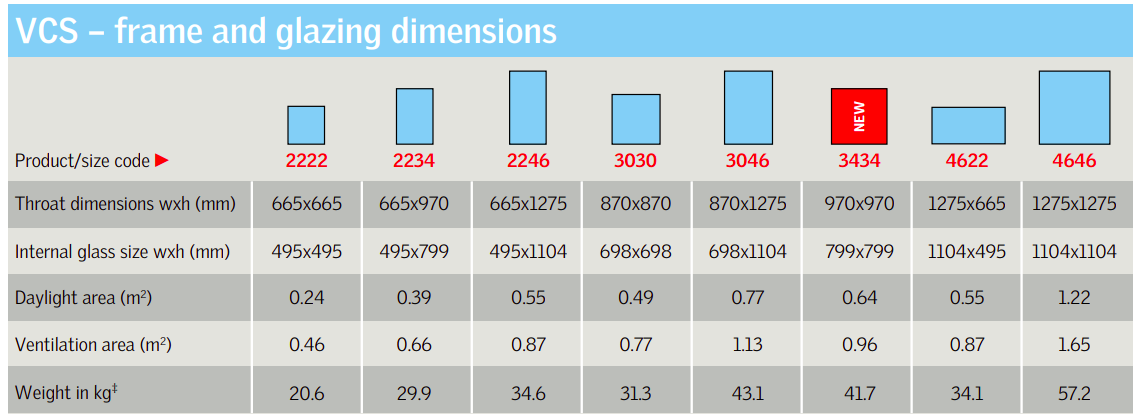

Technical Information

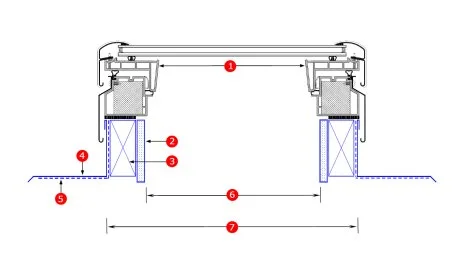

‡VCS must be installed with insulation and Gyprock, as shown (typical installation), to achieve 2.9 U-value rating.
- Inner glass dimension
- Internal lining eg: Gyprock
- Timber base / upstand
- Flashing
- Insulation / thermal blanket
- Inner throat dimension
- Overall throat dimension
