Ecolite PLUS™

The Ecolite PLUS™ insulated glass unit (IGU) is a revolutionary second generation double glazed glass skylight which exhibits extremely high light transmission with very low solar heat gain.


Product features:
  • Available in custom, modular or single units.
  • Ideally suited to residential and commercial projects such as office buildings, community centres, education, health care and public buildings where maximum light transmission with low solar heat gain is required.
  • Exceeds the performance of the existing 5 star energy rated Belray Ecolite PLUS™ IGU as tested by Window Energy Rating Scheme (WERS).

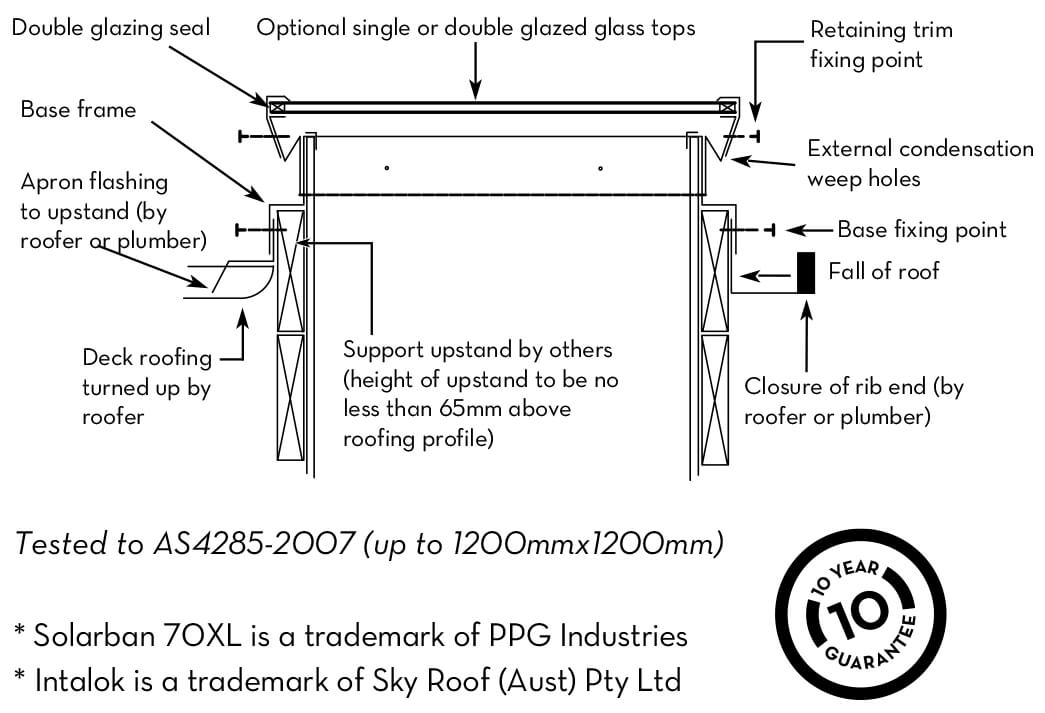

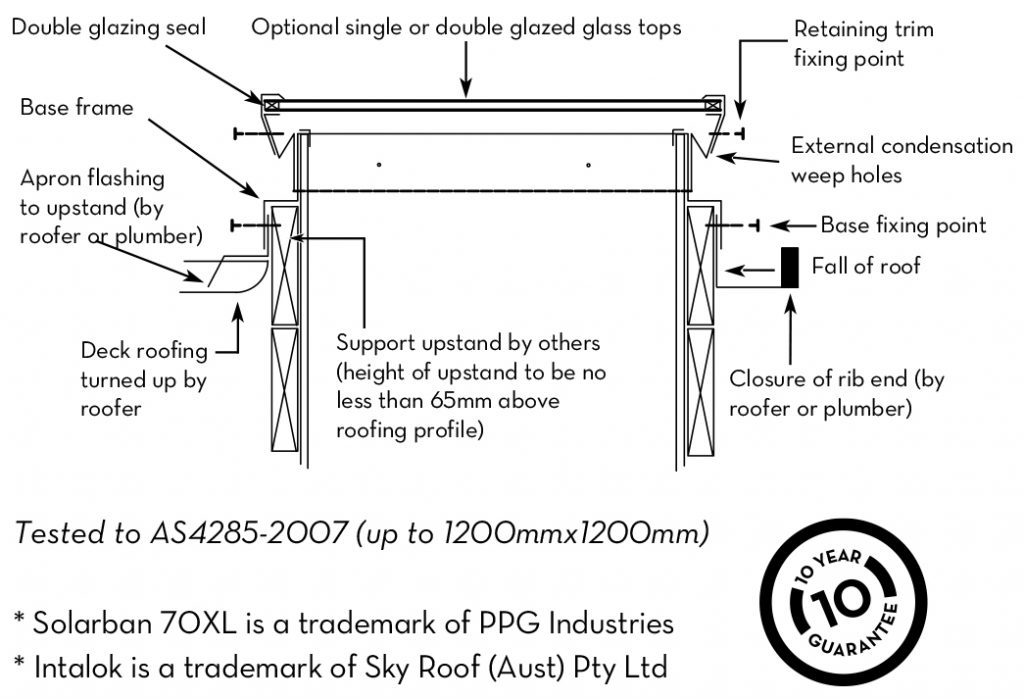

  • Comprises a Solarban 70XLTM* toughened outer pane with a double layered low-e coating, argon filled spacer and a clear laminated inner pane.

Why Should You Choose Ecolite PLUS™

CodeMark Accredited

Ecolite PLUS™ CodeMark Certification meets the mandatory building code compliance requirements in Australia.

Highest Performance

Ecolite PLUS™ is 5 star energy rated and provide superior energy efficiency.

Health Benefits

Ecolite PLUS™ deliver natural light that improves your physical and mental well-being, enhancing your home environment.

Looking for a quote on Ecolite PLUS™ or want to discuss your daylighting needs? Call us today on 1300 168 374.

More from our Belray Skylights range

Ecolite PLUS™

Find out more VELUX VS

OpalLite & ClearLite

Find out more VELUX VSE

SelectoLite™

Find out more VELUX VSS

CircuLite

Find out more VELUX FCM

FiltaLite

Find out more VELUX GGL & GPL

EcoLite™ PLUS – Insulated Glass Skylights

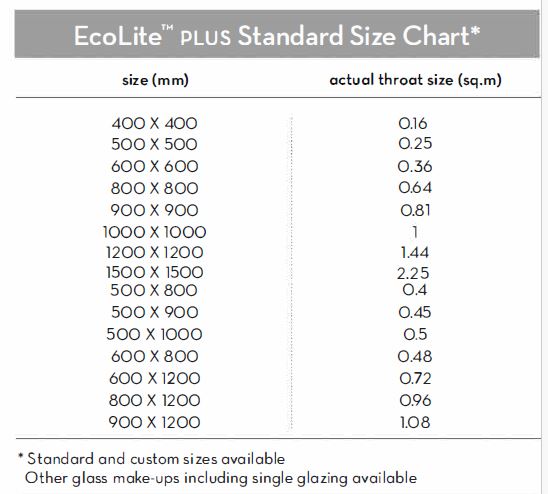

Standard Size Chart
Size Chart

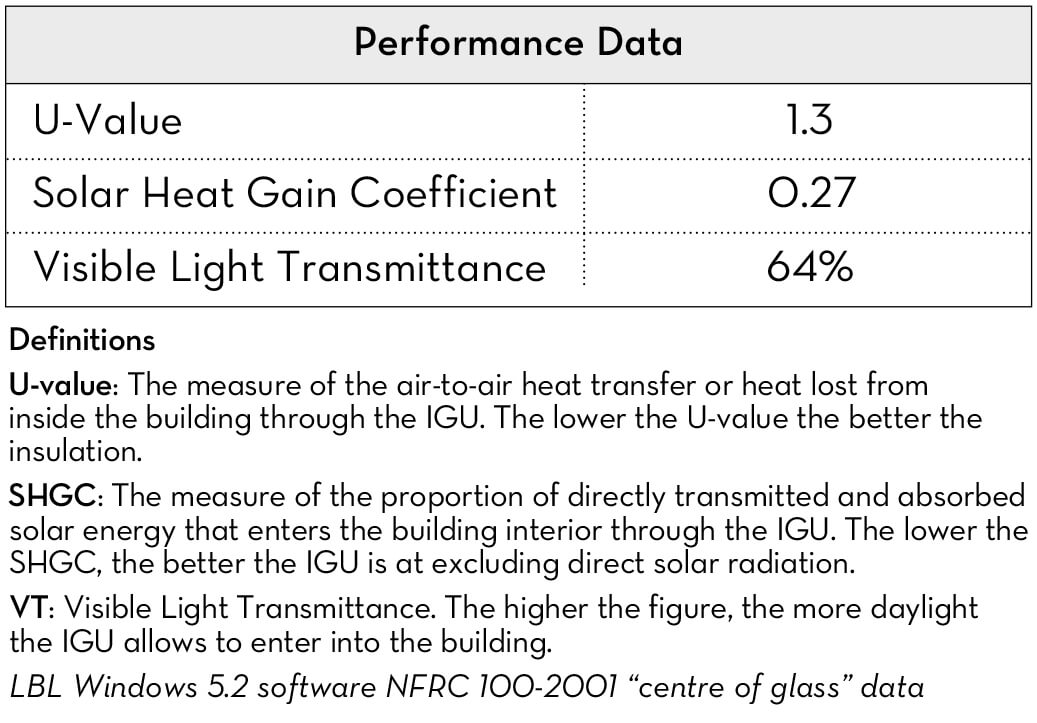

Performance Data
Performance Data

Performance Data
  • The Toughed outer pane is a Grade A Safety Glass of 6mm minimum thickness and made from a low-iron content glass which provides colour neutral light transmission.
  • The laminated inner glazing pane reduces UV radiation by 95%.
  • Exceeds BCA section J requirements.
  • Non-combustible with no elements exposed to outside fires and complies with BCA requirements for skylights installed within 900mm of a boundary.
  • Belray EcoliteTM Plus IGU is designed to suit all roof types and roof pitches with no minimum pitch angle required, and provides a sleek low profile.
  • To maximize the environmental benefit, comes standard as a non-vented unit, however venting is available upon request.
  • Available in Colorbond®, Zincalume® and galvanised finishes.
