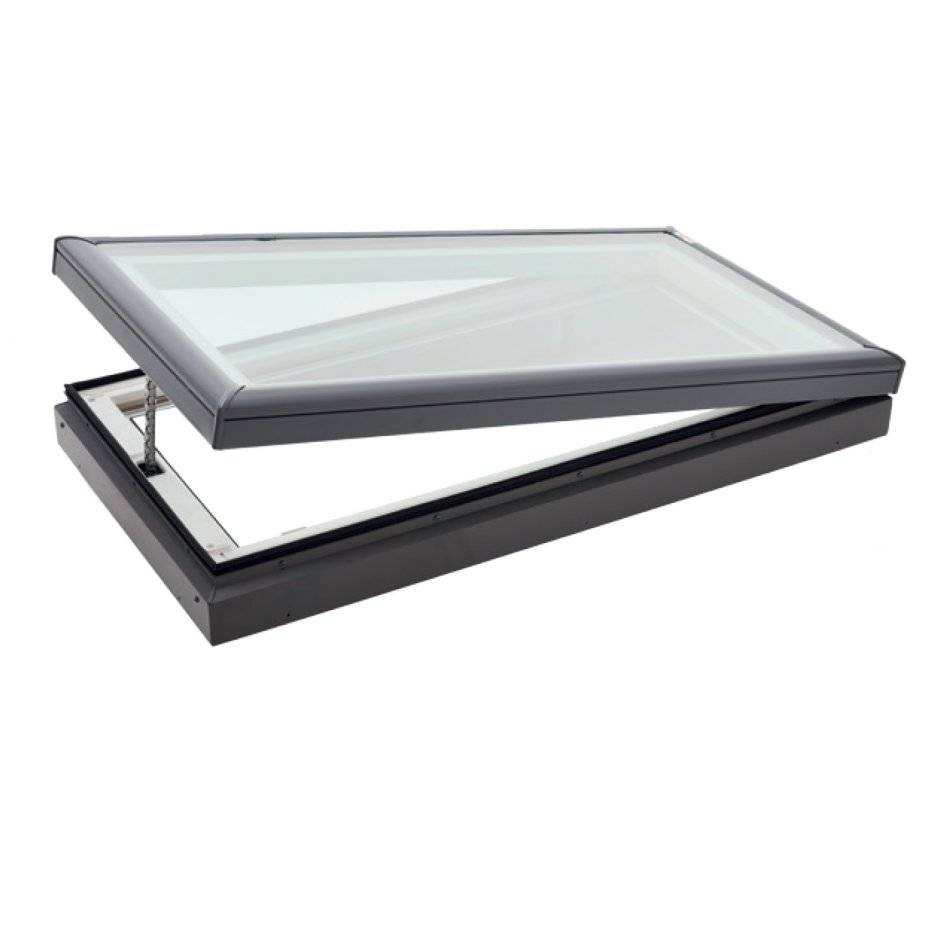

VELUX VCM
The VCM opening skylight for flat roofs is the cost effective solution for natural ventilation.
The pre-installed Insect Screen adds the benefit of keeping mosquitoes and flies out in summer.
Manual Skylight Flat Roof

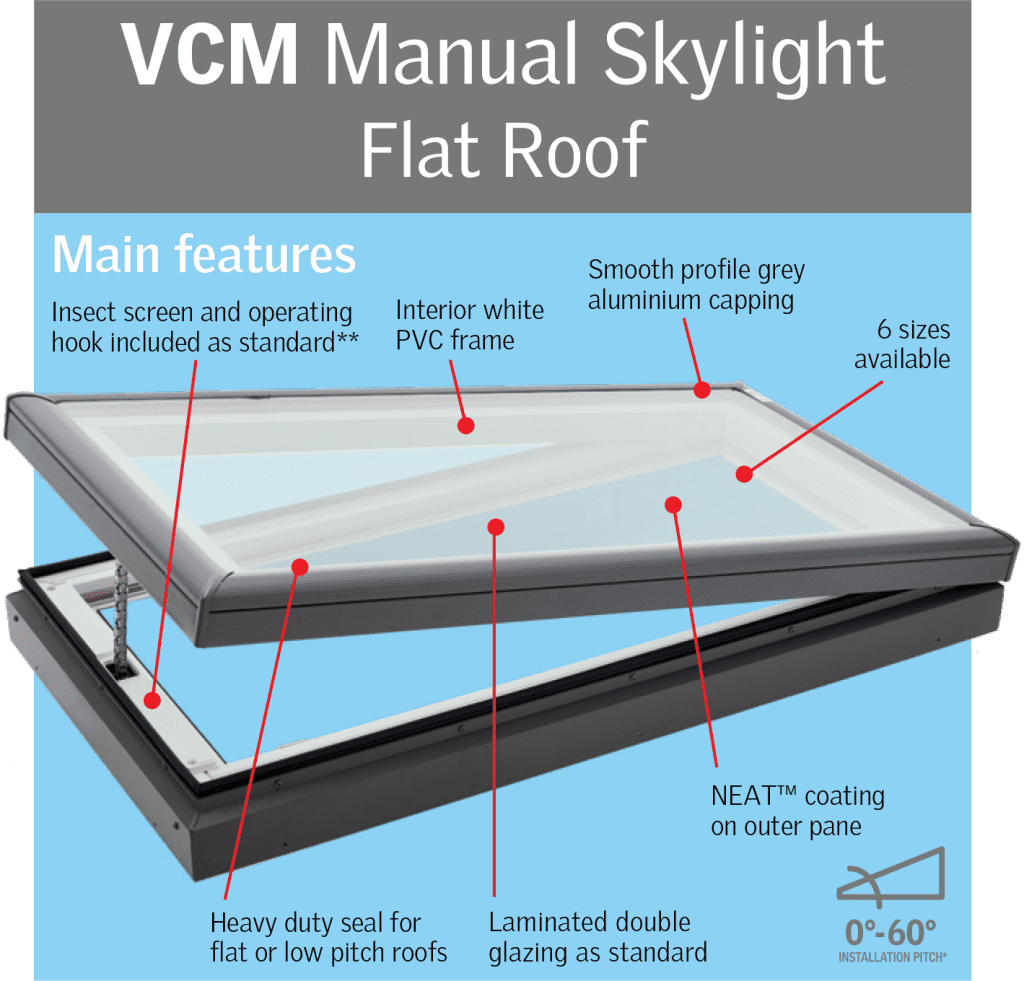

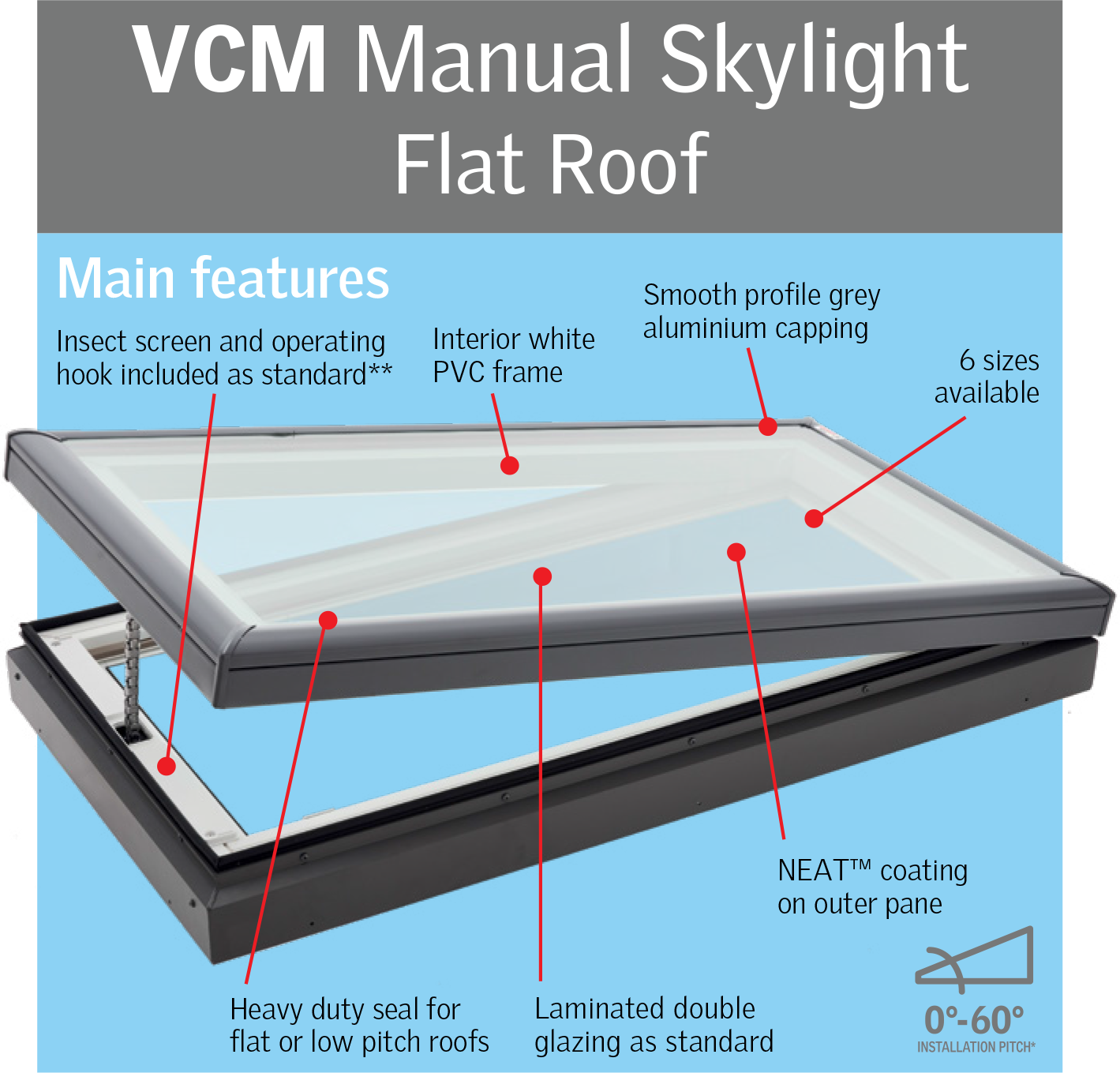

Product features:
- Maintenance free – White PVC interior frame for a tough interior finish
- High Performance double glazing as standard, with NEAT™outer coating: reduces cleaning frequency
- Includes removable insect screen
- Outer aluminium cappings (grey)
- Available in 6 sizes
- Operated by winder handle for within-reach situations or by rod for out-of-reach use. (sold separately)
- Requires custom-made flashing (not supplied by VELUX)

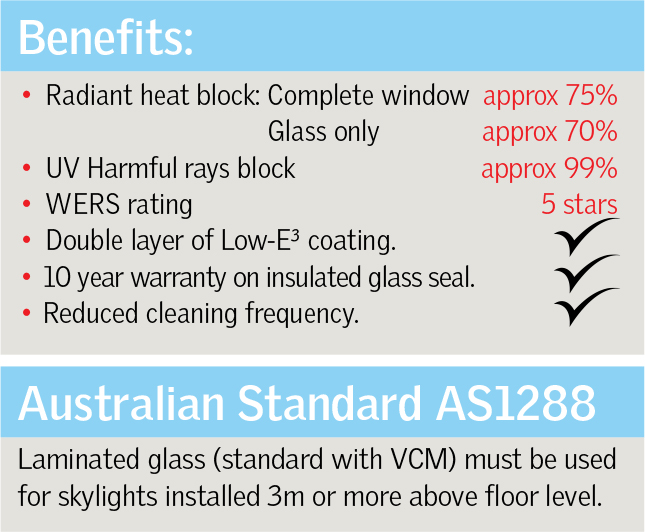

- Approx 75% heat block
Our range of VELUX products
Technical Information

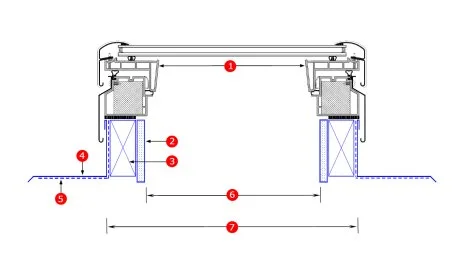

‡VCM must be installed with insulation and Gyprock, as shown (typical installation), to achieve 2.9 U-value rating.
- Inner glass dimension
- Internal lining eg: Gyprock
- Timber base / upstand
- Flashing
- Insulation / thermal blanket
- Inner throat dimension
- Overall throat dimension
