VELUX GGL & GPL
Beautifully engineered for a lifetime of use, the GGL Centre-Pivot and GPL Dual action roof windows are ideal for within-reach attic situations
Centre-Pivot and Dual Action Roof Windows let you transform attic spaces into beautiful living areas filled with Daylight and Fresh Air.
Centre-Pivot and Dual Action Roof Windows
The Vent Flap adds the extra convenience of controllable passive ventilation even when it’s raining!
The Pivoting Roof Windows are made of white prepainted treated pinewood sash and frame. From the outside they are protected by maintenance free external aluminium cappings in “grey” colour.
Product Features
- White painted interior wood frame and sash.
- Outer aluminium cappings (grey).
- Operated by winder handle, for within reach attic situations only, or by rod for out-of reach use (to 285cm above head height).
- Smooth, low profile sits lower in the roof, does not obstruct the roofline.
- Choice of 10 sizes.
- High Performance double glazing as standard; with NEAT™ coating to reduce cleaning frequency.
VELUX GGL and GPL is one of Australia’s highest quality and most technologically advanced skylight systems.
Ventilate
This model is the only one which has a Vent Flap. The Vent Flap allows you to have controllable passive ventilation in your home.
Natural pinewood
Made of natural pinewood, pre-treated and pre-coated with two layers of water-based acrylic lacquer.
Ventilation flap
Our unique ventilation flap keeps dust and insects out while letting fresh air in.
Top handle bar
(GGL only)
Pick & Click
This model comes with pre-fitted mountings for our Pick & Click system allowing easy installation of Blinds.

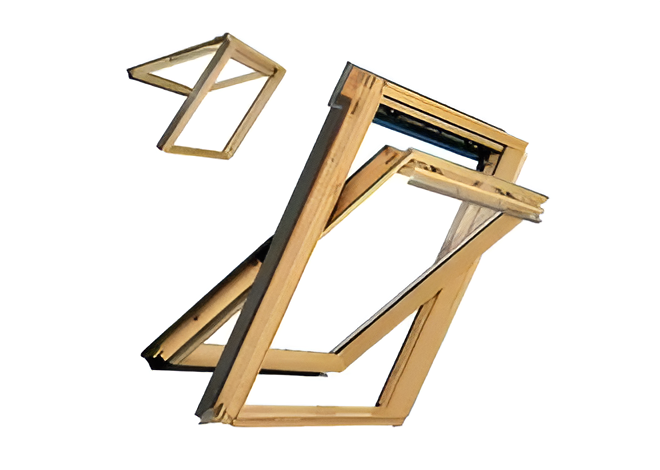

Centre-Pivot Roof Window GGL
This is the original VELUX Roof Window designed 70 years ago. This type of Skylight is not recommended for out of reach applications.
Product Features
- A short pull on the top control bar allows filtered background ventilation even while the window remains shut.
- A second pull on the control bar allows the window to rotate for maximum ventilation – and up to 180° for cleaning the outer pane from inside the room.
- Quality lacquered pine sash & frame.
- Complete with outer aluminium cappings and flashings for corrugated iron or tile roofs.
- Available in 4 sizes.
- High Performance double glazing as standard.
- Insect screen available as extra.
* For roofs below 15° pitch, skylights need to be raised to 15° and custom flashed. VELUX can assist with technical advice and drawings.
{ U-value (W/m²K) and SHGC calculated according to EN 14351-1:2006 + A1:2010 (window size 1140mm x 1400mm). }
^ Bushfire testing applicable to GGL in roof pitch 18°-75° and GPL in roof pitch 18°-55°. Roof window only. Custom-made flashing required. Additional mesh protection may be required for opening apertures (consult local council).
‡ Roof window in closed position.

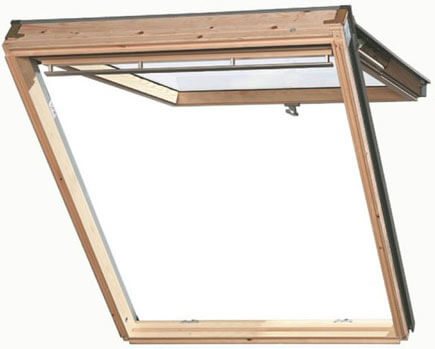

Dual Action Roof Window GPL
Developed for use in attics with shallower pitched roofs to maximise roof top views. Suitable for within reach only applications.
Product Features
- Opens in two ways: the bottom handle allows for top-hung opening; while a short pull on the top control bar operates the filtered vent flap for background ventilation even while the window is shut. A longer pull allows the sash to rotate 180° for ease of cleaning the outer pane from inside the room.
- Quality lacquered pine sash & frame.
- Complete with outer aluminium cappings and flashings for corrugated iron or tile roofs.
- Available in 4 sizes.
- High Performance double glazing as standard.
- Insect screen available as extra.
* For roofs below 15° pitch, skylights need to be raised to 15° and custom flashed. VELUX can assist with technical advice and drawings. (NB: build-up not recommended in Bushfire areas.)
† U-value (W/m²K) and SHGC calculated according to EN 14351-1:2006 + A1:2010 (window size 1140mm x 1400mm).
^ Bushfire testing applicable to GGL in roof pitch 18°-75° and GPL in roof pitch 18°-55°. Roof window only. Custom-made flashing required. Additional mesh protection may be required for opening apertures (consult local council).
‡ Roof window in closed position.
Looking for blinds to go along with your skylight?
We now offer white blinds for VELUX! Now even easier to fit using VELUX Pick & Click System. Ask Belle Skylights about blinds today!
