VELUX

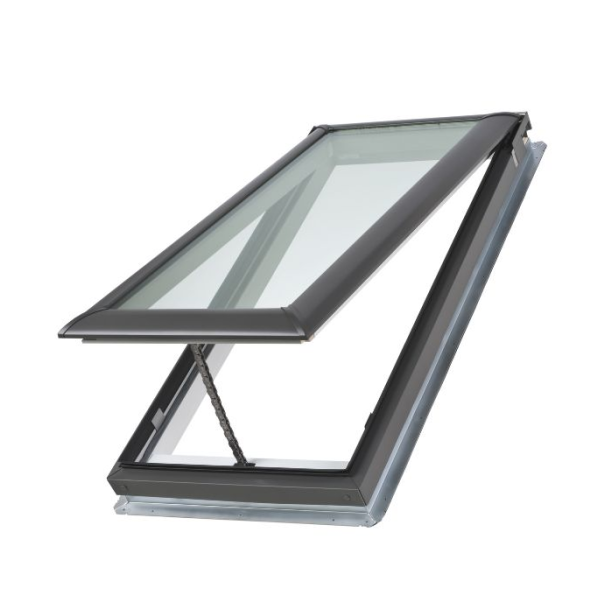

The VS Manually Opening Skylight offers the comfort and energy savings of free daylight and natural ventilation. The pre-installed Insect Screen adds the benefit of keeping mosquitoes and flies out in summer.

Manually-operated top-hung skylights

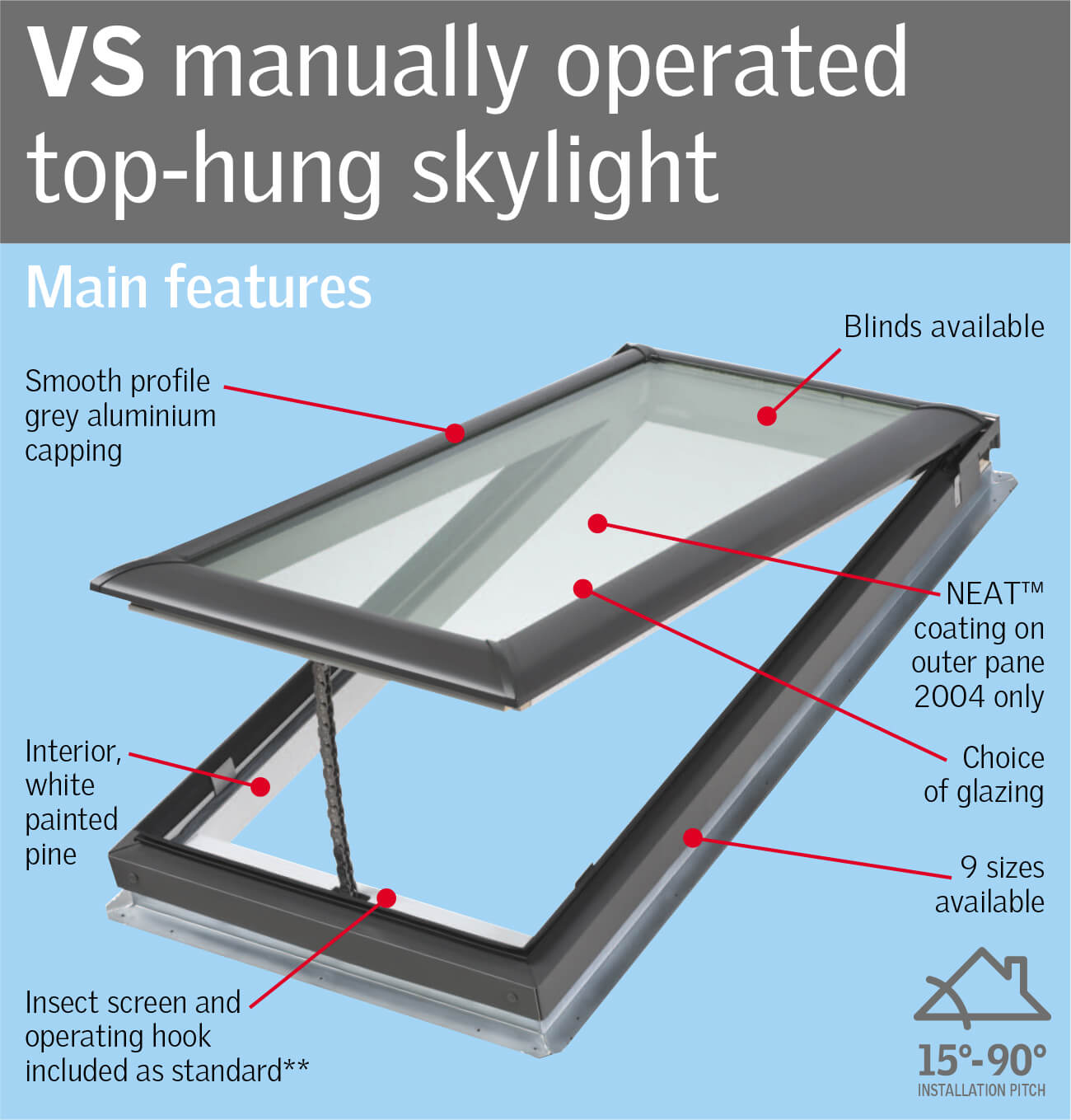

Product features:

  • White painted interior wood frame and sash.
  • Outer aluminium cappings (grey).
  • Operated by base handle, for within reach situations, or by rod for out-of reach use (to 285cm above head height).
  • Smooth, low profile sits lower in the roof, does not obstruct the roofline.
  • Choice of 9 sizes.
  • Choice of High Performance glazing (with NEAT™ coating: reduces cleaning frequency) or Comfort double glazing (most sizes).
  • Insect screen fitted as standard.
  • Complete with flashings for corrugated iron or tile roofs.

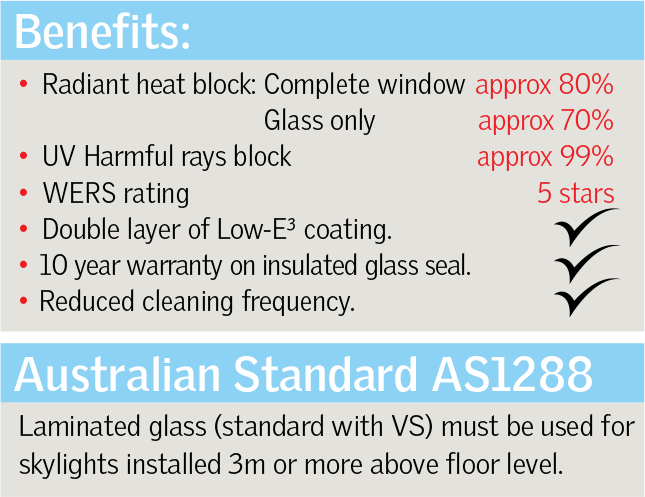

  • Approx 80% Heat Block.

vs iconNeat

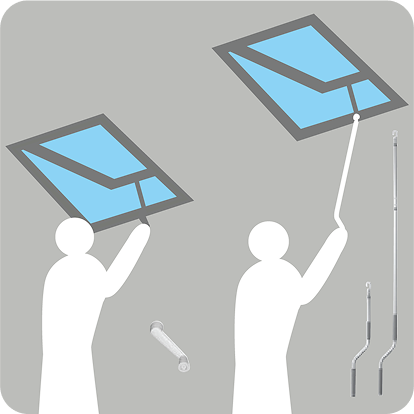

Control options

ZZZ201Window handle for operating within-reach skylights.

ZCT300Telescopic rod control for out-of-reach situations. (145cm in length, extendable up to 285cm.)

ZOZ032Short control rod. 60cm long.

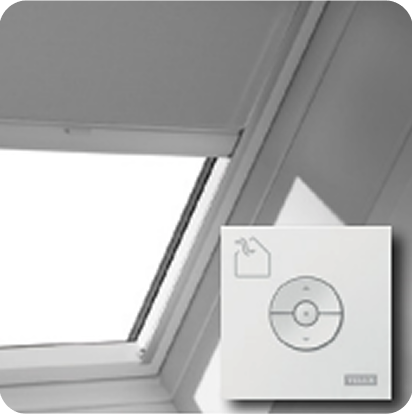

Blinds

Looking for blinds to go along with your skylight? We now offer white blinds for VELUX VS! Now even easier to fit using VELUX Pick & Click System. Ask Belle Skylights about blinds today!



* For roofs below 15° pitch, skylights need to be raised to 15° and custom flashed. VELUX can assist with technical advice and drawings. (NB: build-up not recommended in Bushfire areas.)
† U-value (W/m²K) and SHGC data based on AFRC simulations for 2004 glazing, (VS/VSE complete skylight: size 1140mm x 1180mm). AS1288 applicable to 2004 glazing variant only.
^ Bushfire testing applicable to 2004 glazing variant Skylight in roof pitch 18°-75°. Skylight only. Custom-made flashing required. Additional mesh protection may be required for opening apertures (consult local council).
‡ Skylight in closed position.
